Angles of this series: 45 degrees, 60 degrees and 120 degrees
Angle: 60 degrees
Match: 6MM lens
Length: 62.5MM
Width: 41.5MM
Height: 13MM
Lens material: optical grade PC
Temperature resistance: -40-+110 degrees

Applicable infrared LED: Chengguangxing, Xusheng, Ruifeng, Genesis, Johnson & Johnson and other infrared LEDs.

Features:

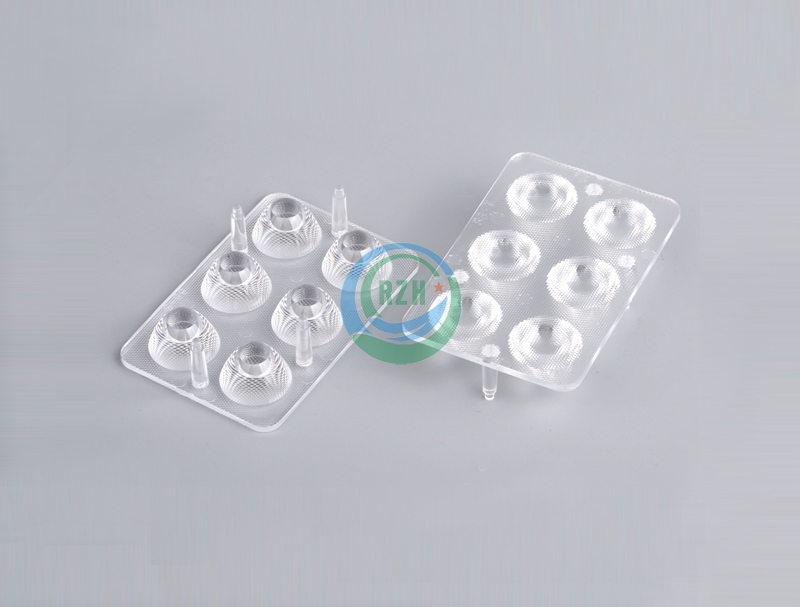

1. Product description: The surface is bead, the light spot is relatively uniform, and there are 4 pillars at the bottom for fixing on the light board;
2. Specially designed for K1 LED lights, the utilization rate of the light emitted by the LED can reach more than 90% (3MM light transmittance is 93%);
3. It is professionally designed with the infrared monitoring lens 8MM, so that the infrared light spot and the visual range of the monitoring screen are effectively unified, without vignetting, with good consistency, and reducing light waste;
4. The angles of the same specification are: 45 degrees, 60 degrees and 120 degrees to choose from;
5. This product adopts high-precision aspheric optical processing, uses imported mold steel, and uses German Covestro optical PC raw materials to ensure sufficient injection molding time and reduce

Product shrinkage rate, all products have passed SGS certification and ROHS environmental protection requirements.

Application:

Widely used in infrared surveillance products such as infrared array cameras, infrared color and black cameras.
